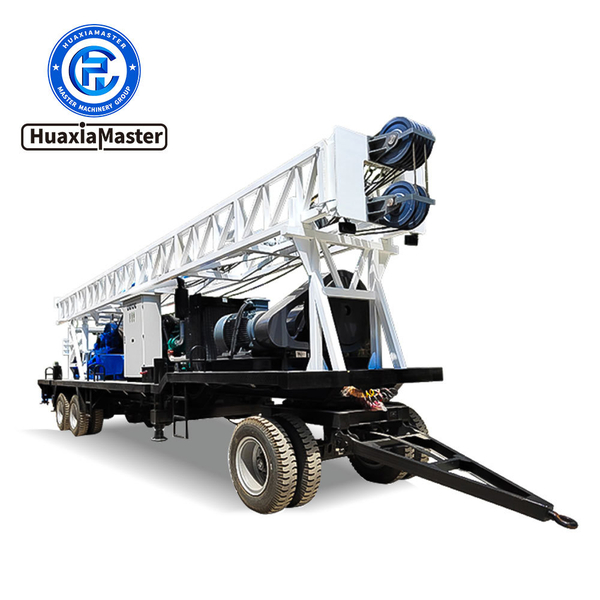

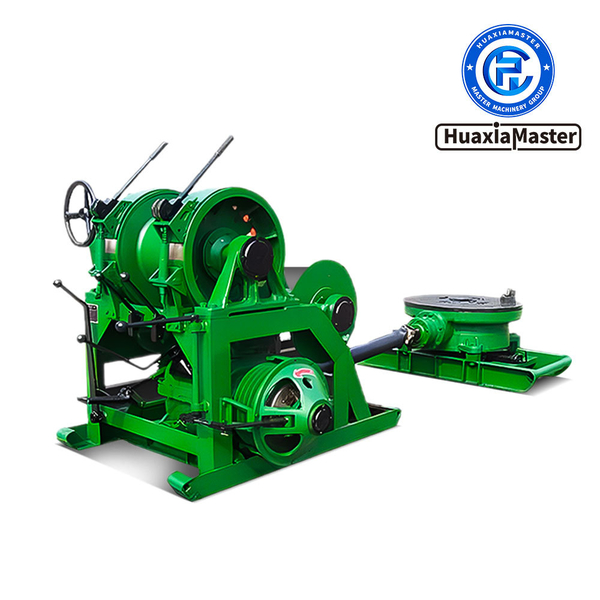

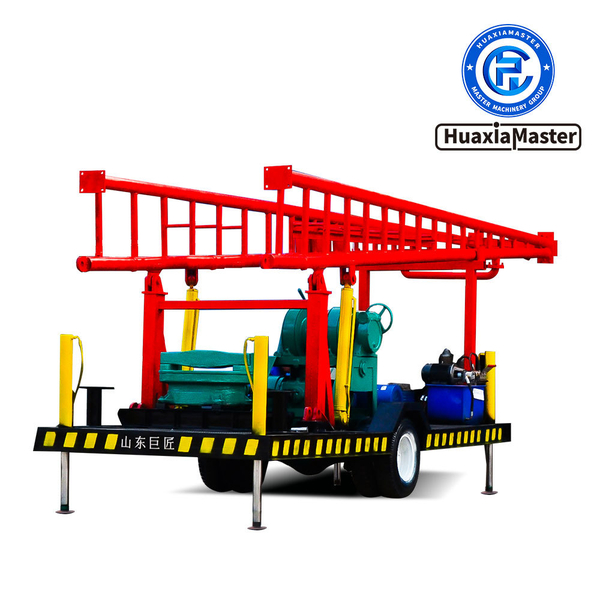

SPJ Series Grinding Disc Water Well Drilling Rig 1 в Жанаозене

1. Introduction of SPJ Series Grinding Disc Water Well Drilling Rig

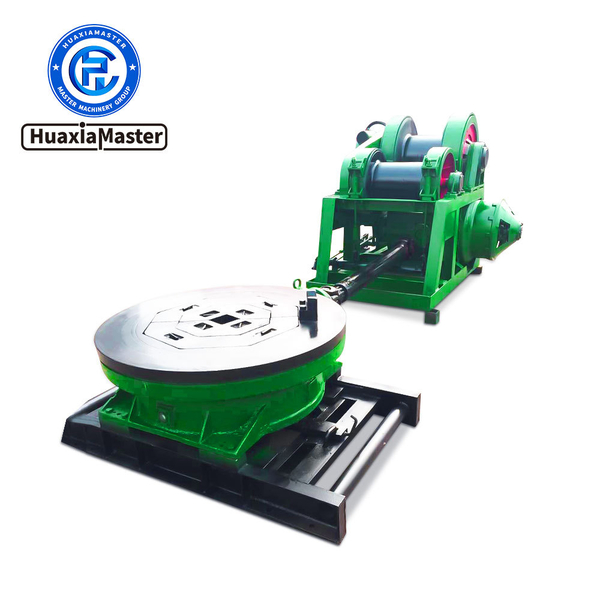

The SPJ series grinding disc drilling rig is a multifunctional large-diameter drilling rig. Its core disc-shaped power head drives the drill to rotate and cut the strata. It has the advantages of good hole quality, high efficiency, and strong adaptability. It can perform large-diameter and deep-hole drilling operations in soil, sand, gravel, and soft rock layers. It is widely used in water well drilling and pile foundation construction of various construction projects, bridge projects, municipal projects, etc. At the same time, the grinding disc drilling rig can also be customized into trailer-type, vehicle-mounted, or crawler-type according to customer needs.‌
2. Features of SPJ Series Grinding Disc Water Well Drilling Rig
2.1 The grinding disc drilling rig is equipped with a diesel generator set and a distribution box. In areas with electricity, it can also be directly connected to the power supply through the distribution box to work, and the power selection is more flexible.
2.2 The drilling rig adopts modular design, which is convenient for assembly and disassembly, and easy for transfer and transportation.
2.3 The winch is configured to realize the lifting of drilling tools, lowering of well pipes, and vertical placement of drilling towers, making the construction convenient and efficient.
2.4 The drilling tower adopts heavy-duty structural design, with key parts resistant to shock and wear, strong structural stability and outstanding anti-overturning performance.
2.5 The drilling rig is simple and easy to learn, and novices can quickly get started, reducing dependence on manual labor.
3.Parameters of SPJ Series Grinding Disc Water Well Drilling Rig
Drilling rig model SPJ-400 SPJ-600 SPJ-1000
Drilling diameter 500mm-1800mm 500mm-2500mm 500mm-2500mm
Drilling depth 50m-400m 50m-600m 50m-1000m
Active drill pipe 108*108*12mm 108*108*12mm 133*133*12mm
Drill pipe 89mm 89mm 89mm/114mm
Main winch lif
